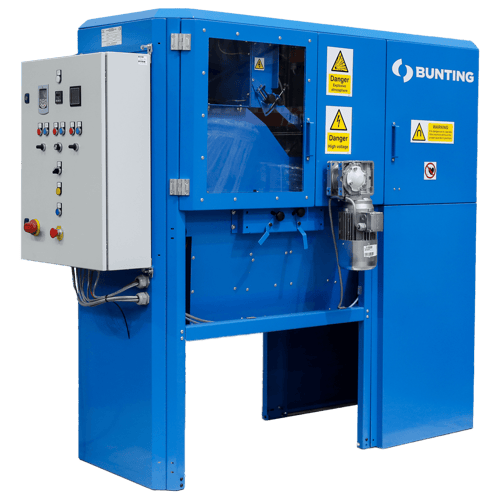

Electrostatic Separators

Bunting Electrostatic Separators use electrostatic charge to separate dry, liberated particles with different levels of electrical conductivity. The process separates conductive materials from non-conductive materials and is used in mineral processing, plastics recycling, and other recovery applications.

Bunting applies more than 65 years of separation and material-handling experience to the design of these dry processing systems. They can process minerals, plastics, and metals to improve product purity, reduce waste, and recover valuable material.

The process uses no water or chemical additives. Each separator can be configured for the material, throughput, and operating conditions, with controls that support repeatable performance.

Applications include mineral processing, plastics recycling, e-waste processing, lithium-ion battery recycling, and end-of-life vehicle recycling. Bunting works with customers to configure each system for their material recovery requirements.

High Separation Efficiency: Separates dry materials with different electrical properties.

Versatile Material Processing: Processes plastics, minerals, and metals in particle sizes from micrometers to millimeters.

Continuous Operation: Supports continuous processing for consistent throughput.

Water-Free Separation: Uses a dry process without water or chemical additives.

Material Recovery: Recovers valuable material and reduces the volume sent to waste.

Product Purity: Removes unwanted conductive or non-conductive material to improve product purity.

Flexible Installation: Available configurations support different plant layouts and processing requirements.

Efficient Operation: Operating settings can be adjusted for the material and required separation.

Material Processing Capabilities

• Particle size range: 40 µm to 4 mm (0.0016 to 0.15 in.).
• Processes plastics, minerals, metals, and other dry materials.

Voltage Range

• Adjustable operating voltage: up to 35,000 V.

Roll Dimensions

• Roll diameter: 350 mm (14 in.).
• Available roll widths: up to 1,500 mm (60 in.).

Feed Rate

• Throughput: up to 1,000 kg/h (2,200 lb/h) per meter of roll width, depending on material type and particle size.

Power Requirements

• Input power: 220 to 240 V, single phase.

Construction Materials

• Stainless steel components provide corrosion resistance for industrial use.

Control System

• Adjustable roll speed, feed rate, and voltage.
• Local electrode and splitter positioning.

Compliance

• Designed in accordance with applicable CE requirements.
