Grate Magnets

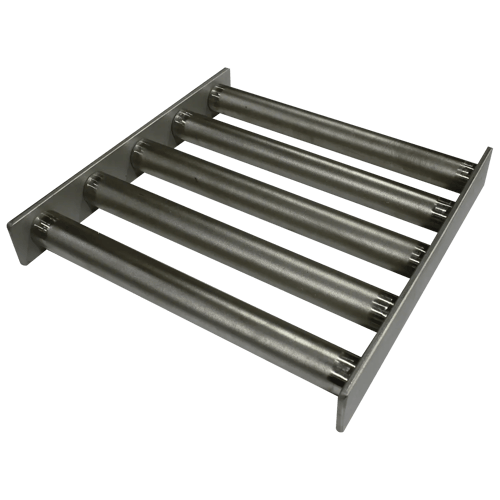

Grate Magnets remove ferrous contaminants from dry, free-flowing materials in gravity-fed processing lines. They are used in food processing, plastics manufacturing, mineral handling, and other applications where product purity and equipment protection are important.

Each grate uses magnetic tubes in ceramic, rare earth, or high-intensity neodymium configurations. The tube arrangement exposes material to a concentrated magnetic field that captures tramp iron and fine ferrous particles.

Stainless steel frames allow Grate Magnets to be installed in hoppers, chutes, and bins. Units can be configured for different equipment shapes and sizes. For cleaning, operators remove the grate from the product stream and wipe the magnetic tubes.

Removing ferrous contamination helps improve product quality and protect downstream equipment. Bunting can recommend the appropriate magnetic material, tube layout, and frame configuration for your process.

Powerful Magnetic Separation: Grate Magnets and Magnetic Cartridges effectively remove ferrous contaminants from bulk materials, ensuring product purity and equipment protection.

Versatile Installation: Easily installed or laid inside hoppers, pits, chutes, housings, and bins, providing flexible solutions for various applications.

Customizable Strength: Available with neodymium rare earth, ceramic, or NUHI™ Neo Ultra High-Intensity magnets, allowing selection of optimal magnetic strength for specific needs.

Durable Construction: Made from 304 or 316 stainless steel, ensuring longevity and resistance to wear in demanding environments.

Easy Maintenance: Designed for quick access and removal, facilitating easy cleaning and minimizing production downtime.

Size Flexibility: Offered in various sizes and configurations, from 4" to 60", to fit a wide range of application requirements.

Temperature Resistant: High-temperature options are available and rated for use up to 350°F without permanent magnet loss.

Industry Compliance: Available in food, sanitary, and USDA finishes, meeting stringent industry standards and regulations.

Enhanced Material Flow: Heavy-duty options feature designs that minimize bridging and product build-up, which are ideal for challenging materials and high flow rates.

Optimized Performance: Engineered to balance magnetic reach-out and holding force, ensuring efficient contaminant capture across various product streams.

Magnet Types
Standard: Ceramic
High Intensity: Neodymium
Ultra High Intensity: NUHI™ Neo

Magnetic Strength
Up to 10,000 gauss (varies by model)

Materials Handled
Dry powders, granular materials, free-flowing products

Standard Sizes
Width: 100 mm (4 in.) to 1,500 mm (60 in.)
Custom sizes available upon request

Construction
Tubes: 25 mm (1 in.) diameter
Frame: 304 stainless steel (standard), 316 stainless steel available for corrosive environments

Magnetic Configuration
Multiple high-intensity magnetic rods arranged in a grid pattern

Temperature Range
Up to 170°C (350°F)

Optional Features
Tapered step face for improved product flow
Angled baffles to direct material over magnetic rods
Self-cleaning options available for specific models

Industries
Food processing, plastics, pharmaceuticals, minerals, recycling

Applications
Gravity-fed systems, chutes, hoppers, bins

Performance
Capable of capturing ferrous contaminants, tramp iron, and fine iron particles

Customization
Available in round, square, and rectangular configurations to suit various applications
