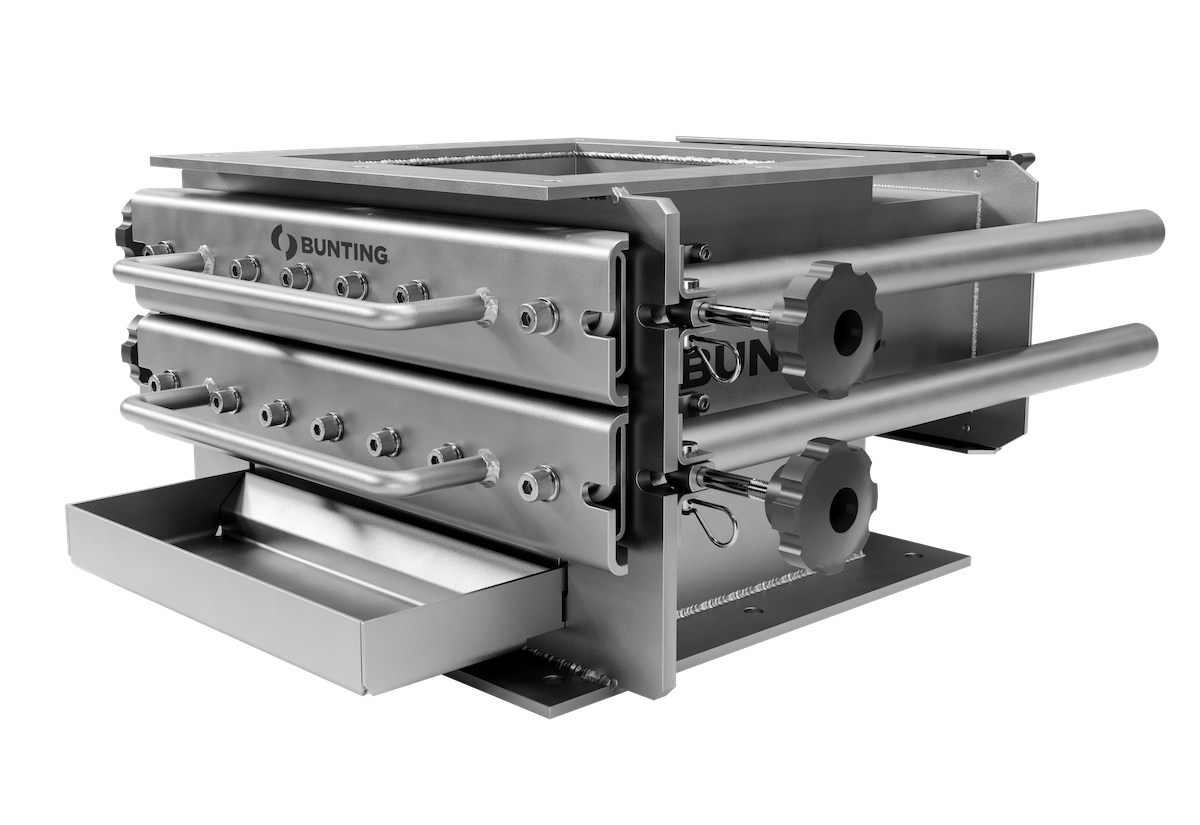

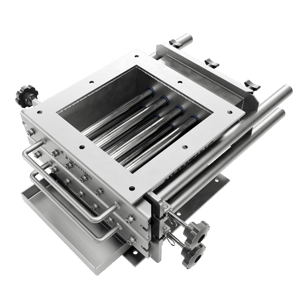

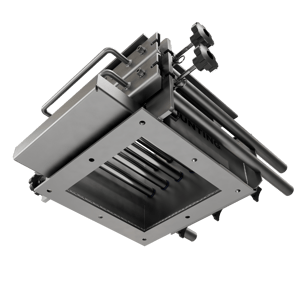

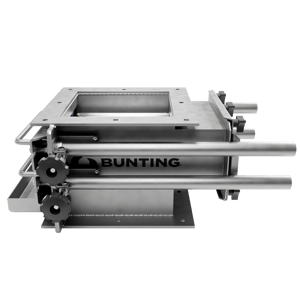

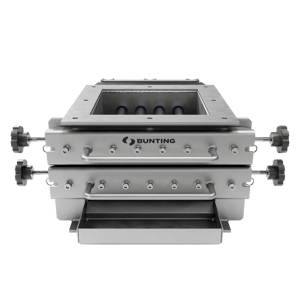

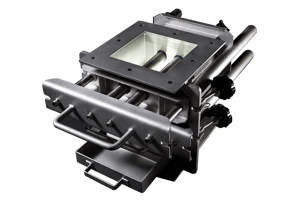

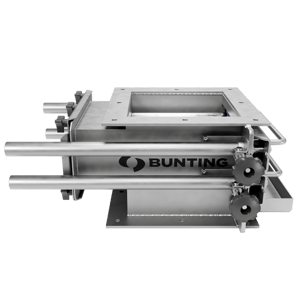

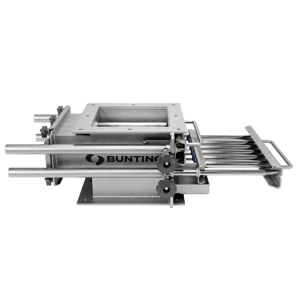

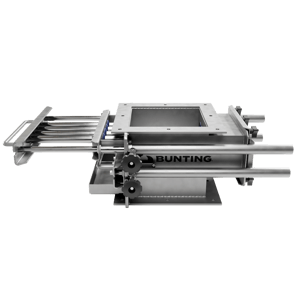

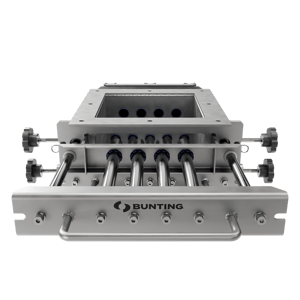

HF Drawer Magnet

The Bunting HF Drawer Magnet is a powerful tool designed to enhance product purity and operational efficiency across various industries. These magnets are equipped with high-performance magnetic cartridges capable of capturing and removing even the smallest ferrous contaminants from product streams. This ensures the protection of machinery and the enhancement of product quality.

The versatile design of the HF Drawer Magnet, coupled with its durable construction and efficient cleaning options, positions it as a reliable solution for safeguarding production processes. Whether you're in the food processing, pharmaceutical, powder & bulk, and recycling, the HF Drawer Magnet offers a robust and effective approach to maintaining product integrity and preventing costly equipment damage.

Powerful Magnetic Strength: Utilizes high-intensity rare earth magnets to ensure maximum separation efficiency.

Easy Cleaning: Optional easy-to-clean design, simplifying maintenance and reducing downtime.

Durable Construction: Made with robust materials for long-lasting performance even in demanding environments.

Versatile Applications: Suitable for various industries, including plastics, food, and pharmaceuticals.

Customizable Options: Offers multiple configurations and sizes to meet specific application needs. Custom sizes increase lead time and cost.

Safety Features: Optionally equipped with safety interlocks to protect operators during cleaning and maintenance.

Conveyance Type
Suitable for mechanical and gravity flow applications in various industries, including under grinders, above rotary air locks, and in various other applications.

Materials Handled
Dry, free-flowing products, including fine powders and granules. Effective for ferrous and weakly magnetic contaminants, including extremely fine or marginally magnetic particles.

Standard Sizes
Available with inside dimensions of 152 mm x 152 mm to 610 mm x 610 mm (6" x 6" to 24" x 24").

Inlet & Outlets
Custom transitions available to match round, square, or rectangular spouting.

Flange Options
6mm (1/4") thick flanges, predrilled to customer specifications. Custom flanges available to match existing equipment.Customization increases lead times and cost.

Body Options
Heavy-duty 304 stainless-steel construction with full-seam, air-tight welds.

Material Contact Options
304 stainless steel for product contact areas.

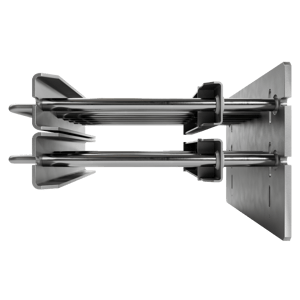

Cleaning Method

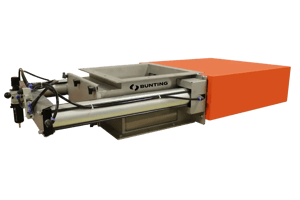

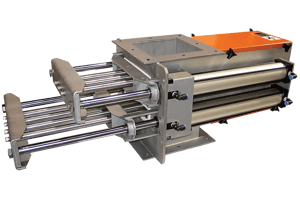

Multiple options: manual standard, manual self-cleaning, pneumatic self-cleaning, and pneumatic continuous self-cleaning.

Magnet Type

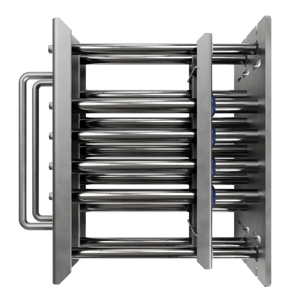

NUHI™ Neo Ultra High-Intensity Cartridge Magnets standard. Ceramic and rare earth options available.

Customization
Available with custom designs to accommodate hard-to-flow products and specific application requirements. Custom sizes increase lead times and price.

Compliance
Available in utility, food, and sanitary construction grades to suit various safety regulations.
