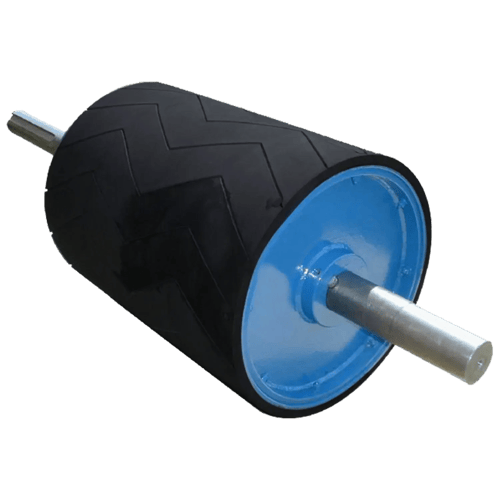

Magnetic Head Pulleys

Magnetic Pulleys Available in Electro and Permanent Magnet Designs

Magnetic Pulleys provide continuous protection against Tramp Iron contamination of both large tramp iron and fine metal particles.

Used in the recycling, powder/bulk, mining and quarries for separation of tramp iron.

They can be used as drive head pulleys or tail pulleys on belt conveyors. They provide maximum, continuous protection against tramp iron contamination, for downstream machinery and product purification of processed materials.

These easily installed units provide permanent magnetic strength and require no maintenance. Magnetic Pulleys are permanent ceramic, but there are instances, where having to alternate conveying material that is magnetic, but should not be separated, requires an electromagnetic pulley. These are also available.

Pulleys are available in diameters of 4″, 6″, 8″, 10”, 12″, 14”, 15″, 16″, 18″, 20”, 24”, 30”, 36”, 42” and 48”.  Width of the pulley, shaft diameter and length are based on customer’s requirements.

Shafts are normally welded-on 4”, 6”, 8” and 10” models, but can be fitted with hubs and bushings of choice as an option. All other sizes, XT Hubs and Bushings are standard. Other type hubs are optional.

Vulcanized rubber lagging and stainless steel shafts are optional.
