Updated for 2026: Metal contamination remains a serious risk for processors handling food, plastics, recycling, powders, bulk materials, aggregates, and other industrial products. Choosing between a magnetic separator, a metal detector, or a combination of both depends on the type of metal, the size of the contamination, the process layout, and whether the priority is removing metal, detecting metal, protecting equipment, or improving product quality.
When metal contamination becomes a concern, many processors quickly narrow the solution down to either a magnetic separator or a metal detector. Both technologies help control metal contamination, but they do different jobs.
A magnetic separator removes ferrous and weakly magnetic metal from the product stream. A metal detector identifies metal contamination and triggers an alarm, reject device, or line stop. In many applications, the best solution is not one or the other, but a combination of both technologies at different points in the process.
Before deciding which system is right for your application, there are five key questions to ask. These questions help define the contamination risk, the type of metal involved, the process impact, and the level of protection required.
Contents
- Why Is the Metal Contamination an Issue?
- What Is the Size and Type of Metal Contamination?
- Is the Metal Magnetic or Non-Magnetic?
- What Is the Extent of the Metal Contamination Issue?
- How Much Could Metal Contamination Impact Your Business?
- Magnetic Separator or Metal Detector?
- When Should You Use Both Technologies?
- Frequently Asked Questions
- Getting the Right Solution
1. Why Is the Metal Contamination an Issue?
The first question to ask is why the metal contamination has become an issue. Is this a long-standing problem, or has it appeared after a recent change to your process, equipment, raw material, or maintenance routine?
Metal contamination can enter a process in different ways. It may come from foreign material entering the product stream, damaged processing equipment, worn screens, broken blades, loose fasteners, maintenance tools, or contamination already present in the raw material.
Understanding the source of the problem is important because it helps determine whether the aim is to remove contamination from the product stream, detect contamination before product reaches the customer, protect downstream equipment, or identify a process issue that needs to be corrected.
For example, if the main issue is protecting a crusher, grinder, mill, or other item of process equipment, the priority may be removing larger ferrous metal before it reaches that equipment. If the main issue is finished product quality or customer protection, the priority may be detecting metal contamination at a defined inspection point.
2. What Is the Size and Type of Metal Contamination?
Metal contamination can occur in many different forms. The size, shape, and type of metal will strongly influence whether a magnetic separator, metal detector, or combined system is most suitable.
Common examples include:

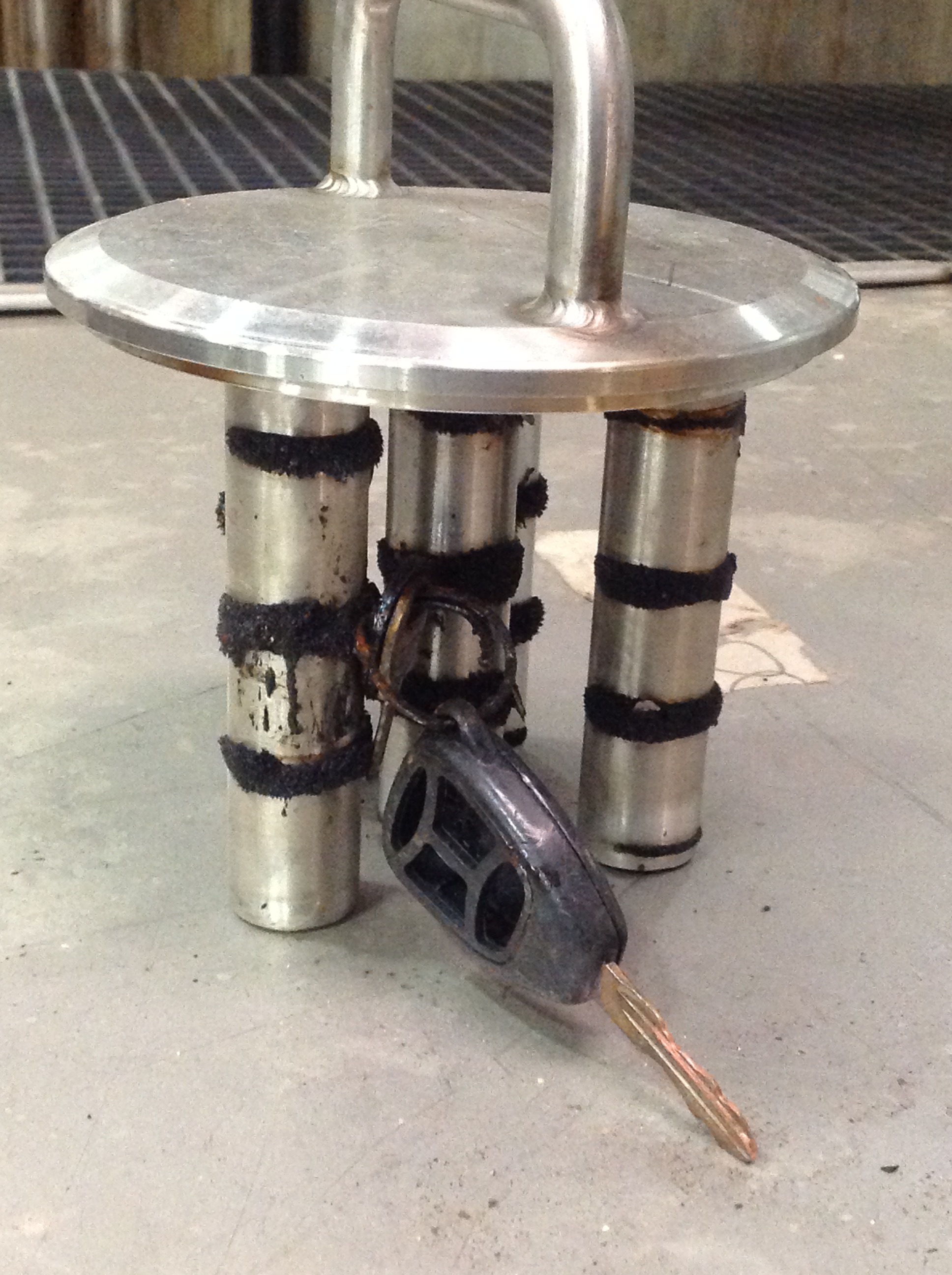

- Large metal items, such as screwdrivers, broken pieces of equipment, car keys, and even the occasional mobile phone.
- Medium-sized metal items, such as nuts, bolts, nails, and pieces of damaged pumps.
- Small metal pieces, such as shards from a broken screen, pins, clips, or fragments from worn equipment.
- Fine and very fine metal contamination, which can occur due to worn processing equipment, especially when processing hard materials such as beans, grain, minerals, aggregates, or recycled material.
The size and form of the contamination matters because different technologies perform different roles. A magnetic separator may be highly effective at removing fine ferrous contamination, while a metal detector may be better suited to identifying larger ferrous, non-ferrous, or stainless steel contamination that has reached a defined inspection point.
In some applications, very fine ferrous contamination is best removed using magnetic separation before the product moves further downstream. In other applications, a metal detector is needed to identify metal that cannot be captured magnetically, such as aluminum, copper, brass, or some grades of stainless steel.
3. Is the Metal Magnetic or Non-Magnetic?
The type of metal is one of the most important factors when choosing between magnetic separation and metal detection.
Ferrous metals, such as iron and mild steel, are magnetic and can usually be removed using a magnetic separator. Weakly magnetic metals may also be captured in some applications, depending on the separator design, magnetic strength, product flow, and particle size.
Non-ferrous metals, such as aluminum, copper, and brass, are not removed by standard magnetic separators. In those cases, a metal detector may be required to identify the contamination and trigger a reject, alarm, or line stop.
Stainless steel can be more complicated. Some stainless steel is considered non-magnetic, but it can become weakly magnetic when it is work-hardened, damaged, or worn. The edges of stainless steel bolts are often weakly magnetic, as is fine stainless steel generated from the wear of processing equipment.
This is why it is important to understand the specific type of metal contamination before selecting equipment. A sample of the contamination can be very useful during the selection process, especially when the metal type is uncertain or when the material behaves differently after it has been processed.
4. What Is the Extent of the Metal Contamination Issue?
How large is the issue? How much of the process is affected? Has the contamination been found once, or is it appearing repeatedly?
Very often, a metal contamination issue is only raised when a customer complains, a key item of processing equipment is damaged, or a batch of product is rejected by internal quality control. However, discovering metal contamination once may suggest that more metal is passing through the system undetected.
A single contamination event may indicate a wider issue. It may be isolated to one part of the process, or it may point to a consistent source of metal entering the product stream. Reviewing the full process helps identify where contamination is entering, where it can be removed, and where final inspection should take place.
In many cases, the correct solution is not just about selecting equipment. It is about understanding the process. The location of the contamination source, product flow, installation space, cleaning access, belt speed, product depth, and downstream risk all influence the final recommendation.
5. How Much Could Metal Contamination Impact Your Business?
Metal contamination can affect a business in several ways. In some applications, the main cost is damaged equipment. In others, the larger risk is customer safety, product rejection, product recall, audit failure, or brand damage.
A damaged reputation or a threat to customer safety can have costs that are difficult to calculate. However, in some cases the cost is more direct. If a piece of equipment is damaged, the cost of repair or replacement may be easy to estimate. There may also be lost production, emergency maintenance, cleaning, labor, disposal, and delayed orders to consider.
Understanding the business impact helps define the level of protection required. For some operations, a single magnetic separator may be enough to protect equipment from ferrous tramp metal. For others, a more complete approach may be needed, using both magnetic separation and metal detection at different stages of the process.
The more serious the consequence of contamination, the stronger the case for reviewing the whole process rather than choosing equipment based on one inspection point alone.
Magnetic Separator or Metal Detector?
Unfortunately, addressing and solving a metal contamination problem may not be as simple as installing one item of equipment. A magnetic separator and a metal detector both help manage metal contamination, but they do different jobs.
A magnetic separator is designed to remove ferrous and weakly magnetic metal from the product stream. This makes it highly effective for applications where the contamination is magnetic and where the aim is to physically capture and remove metal before it moves further through the process.
A metal detector is designed to identify metal contamination as product passes through an inspection zone. When metal is detected, the system can trigger an alarm, reject device, belt stop, or other response. Metal detectors can detect ferrous, non-ferrous, and stainless steel contamination, depending on the application, product effect, aperture size, and system setup.
A magnetic separator may not capture a larger stainless steel item, whereas a metal detector will not be as effective if the objective is to continuously remove fine or very fine ferrous metal from a product stream. There are also practical considerations relating to installation, such as space, access, product depth, belt speed, cleaning requirements, and process layout.
The most reliable way to determine what is needed is to complete a full review of the process, assess critical areas, and identify the potential sources of contamination. This helps create a more complete and robust solution.
When Should You Use Both Technologies?
In many applications, the best solution is to use both magnetic separation and metal detection. Each technology performs a different role, and together they can provide a stronger metal contamination control strategy.
A magnetic separator may be installed earlier in the process to remove ferrous or weakly magnetic metal before it reaches sensitive downstream equipment. A metal detector may then be installed later in the process to inspect for ferrous, non-ferrous, and stainless steel contamination before final product release, packaging, or dispatch.
This combined approach is common in industries where product quality, equipment protection, and customer confidence are all important. Examples include food processing, plastics processing, powder and bulk handling, recycling, aggregates, minerals, and other production environments where metal contamination can cause operational or quality issues.
Using both technologies can help reduce the amount of metal reaching final inspection, protect downstream machinery, improve product quality, and provide an additional layer of assurance before product leaves the process.
Frequently Asked Questions
Do I need a magnetic separator or a metal detector?
The right choice depends on the type of metal contamination, the size of the metal, the process layout, and the reason the contamination needs to be controlled. Magnetic separators remove ferrous and weakly magnetic metal from the product stream, while metal detectors identify ferrous, non-ferrous, and stainless steel contamination and trigger an alarm, reject device, or line stop.
What is the difference between a magnetic separator and a metal detector?
A magnetic separator physically captures and removes ferrous or weakly magnetic metal from the product stream. A metal detector identifies metal contamination as product passes through an inspection zone and then triggers a response such as an alarm, reject device, or belt stop.
Can a magnetic separator remove all types of metal?
No. Magnetic separators are designed to remove ferrous and weakly magnetic metals. They will not normally remove non-ferrous metals such as aluminum, copper, or brass. Some stainless steel may be weakly magnetic if it has been work-hardened, damaged, or worn, but this depends on the grade and condition of the metal.
Can a metal detector detect stainless steel?
Yes. Metal detectors can detect many stainless steel contaminants, but stainless steel is usually more difficult to detect than ferrous or non-ferrous metal. Detection performance depends on the product, aperture size, contaminant size, orientation, line speed, and detector setup.
When is a magnetic separator the better choice?
A magnetic separator is often the better choice when the contamination is ferrous or weakly magnetic and the objective is to physically remove metal from the product stream. It is commonly used to protect downstream equipment, reduce metal burden, improve product purity, and capture fine ferrous contamination.
When is a metal detector the better choice?
A metal detector is often the better choice when the objective is to identify metal contamination at a specific inspection point. Metal detectors are useful when contamination may include ferrous, non-ferrous, or stainless steel metal, or when the system needs to trigger a reject, alarm, or line stop.
Should magnetic separators and metal detectors be used together?
In many applications, using both technologies provides stronger protection. A magnetic separator can remove ferrous or weakly magnetic metal earlier in the process, while a metal detector can inspect later in the process for ferrous, non-ferrous, and stainless steel contamination before product release, packaging, or dispatch.
What questions should I ask before choosing metal contamination equipment?
Key questions include why the metal contamination is an issue, what size and type of metal is present, whether the metal is magnetic or non-magnetic, how much of the process is affected, and how much the contamination could impact equipment, product quality, safety, customers, or reputation.
Can metal contamination damage processing equipment?
Yes. Metal contamination can damage crushers, grinders, mills, pumps, screens, conveyors, and other processing equipment. Removing or detecting metal before it reaches sensitive machinery can reduce repair costs, unplanned downtime, lost production, and wider operational disruption.
How do I choose the right solution for metal contamination?
The most reliable approach is to review the full process, identify where contamination is entering, understand the type and size of the metal, assess downstream risks, and consider installation space, product flow, access, cleaning, and the consequence of contamination. This helps determine whether a magnetic separator, metal detector, or combination of both is most suitable.
Getting the Right Solution
You may determine that you need a magnetic separator. You may decide that you need a metal detector. In many cases, you may need both.
Often, a combination of technologies located at different points within the process will provide the most complete protection. The right equipment depends on the metal type, contamination size, product characteristics, process layout, installation space, cleaning requirements, and the consequences of contamination reaching the next stage of production.
Whatever your application, Bunting can help review your process and recommend the right solution for your metal contamination challenge.
For more information, please contact us.
