Magnetic Separation

Electro Overband Magnets

Magnet Electromagnetic Coil
Strength Up to 10,000 Gauss (higher options available)
Material Dry and wet bulk materials
Separates Ferrous

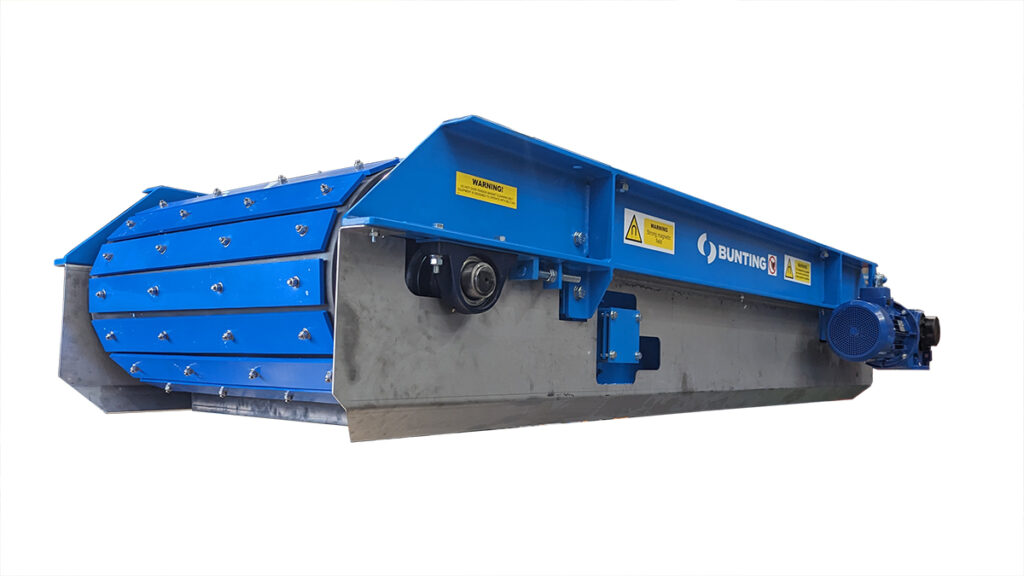

ElectroMax-Plus_180-111808043-1024x576

Options / Features

Bunting Air Cooled Electromagnetic Overband Magnet

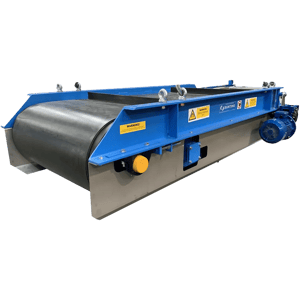

ElectroMax

The ElectroMax is a lightweight and powerful Overband Magnet and is ideal for applications where space is limited or when extra separation power is required.

ACW-+Air+Cooled+Electro-1920w
Air Cooled

Utilizes ambient air circulation to maintain optimal magnet temperature, ensuring consistent performance in moderate-duty applications with lower ambient temperatures.

Electro_Overband_Magnet_DonV_160357-feee081d-1920w
Oil Cooled

Circulates oil through the magnet coil for superior heat dissipation, allowing for stronger magnetic fields and continuous operation in demanding industrial environments.

Animation

Electro Overband Magnets are essential tools for effective ferrous metal separation in various industrial applications. Designed with advanced electromagnetic technology, these magnets deliver powerful and adjustable magnetic fields, ensuring the efficient removal of ferrous contaminants from bulk materials on conveyor systems.

At Bunting, we leverage decades of experience in magnetic engineering to create Electro Overband Magnets that meet the highest standards of performance and reliability. Our commitment to innovation means that we continuously improve our designs, incorporating features such as adjustable strength, deep field penetration, and energy-efficient operation.

These magnets are ideal for a wide range of industries, including recycling, mining, construction, and bulk material handling. They excel in demanding environments where consistent performance is crucial for maintaining product quality and protecting downstream equipment from damage caused by tramp metal.

With options for air or oil cooling systems and customizable sizes, our Electro Overband Magnets can be tailored to fit specific operational needs. We also offer advanced models with remote monitoring capabilities, allowing operators to track performance in real-time and optimize maintenance schedules.

By choosing Bunting's Electro Overband Magnets, you are investing in a solution that enhances operational efficiency, improves product purity, and reduces downtime. Our expert team is dedicated to providing exceptional support and guidance to help you find the right magnetic separation solution for your unique requirements.

Powerful Magnetic Field: Electro Overband Magnets generate strong, adjustable magnetic fields, ensuring superior ferrous metal separation even in challenging applications.

Adjustable Strength: The magnetic field strength can be easily adjusted to suit different materials and conveyor speeds, optimizing separation efficiency.

Deep Field Penetration: These magnets can effectively remove ferrous contaminants from deeper burden depths, making them ideal for high-volume conveyor systems.

Continuous Operation: Designed for 24/7 operation, Electro Overband Magnets provide consistent performance in demanding industrial environments.

Versatile Applications: Suitable for various industries including recycling, mining, and bulk material handling, offering flexible solutions for diverse separation needs.

Energy Efficiency: Modern designs incorporate energy-saving features, reducing operational costs while maintaining high performance.

Enhanced Product Purity: By effectively removing ferrous contaminants, these magnets significantly improve the quality and value of the processed materials.

Equipment Protection: Removing tramp metal helps prevent damage to downstream processing equipment, reducing maintenance costs and downtime.

Customizable Options: Available with various cooling systems and designs to meet specific operational requirements and environmental conditions.

Magnet Type
Electromagnetic coil (Air or Oil cooled)

Magnetic Strength
Up to 10,000 Gauss (1.0 Tesla), adjustable

Materials Handled
Suitable for dry and wet bulk materials

Standard Sizes
Width: 20" to 118" (500 mm to 3000 mm)
Custom sizes available upon request

Suspension Height
Up to 40" (1000mm)

Belt Speed
Typically 200-300 ft/min (1-1.5 m/s), adjustable

Frame Construction
Heavy-duty steel, powder-coated or stainless steel options

Positioning Options
Inline (over head pulley) or Crossbelt

Power Supply
3-phase, voltage options available (e.g., 380V, 415V, 460V)

Safety Features
Overload protection, emergency stop, thermal sensors

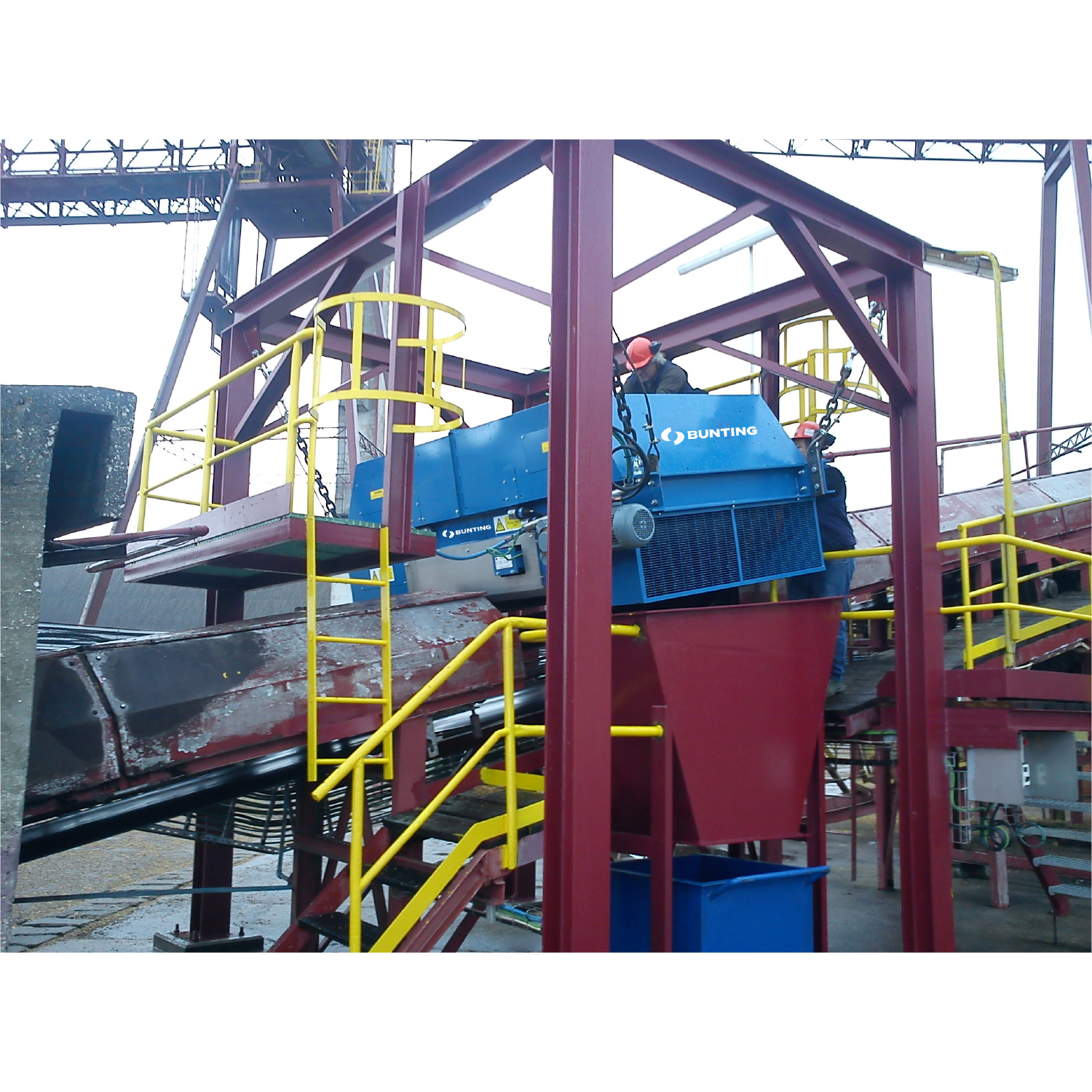

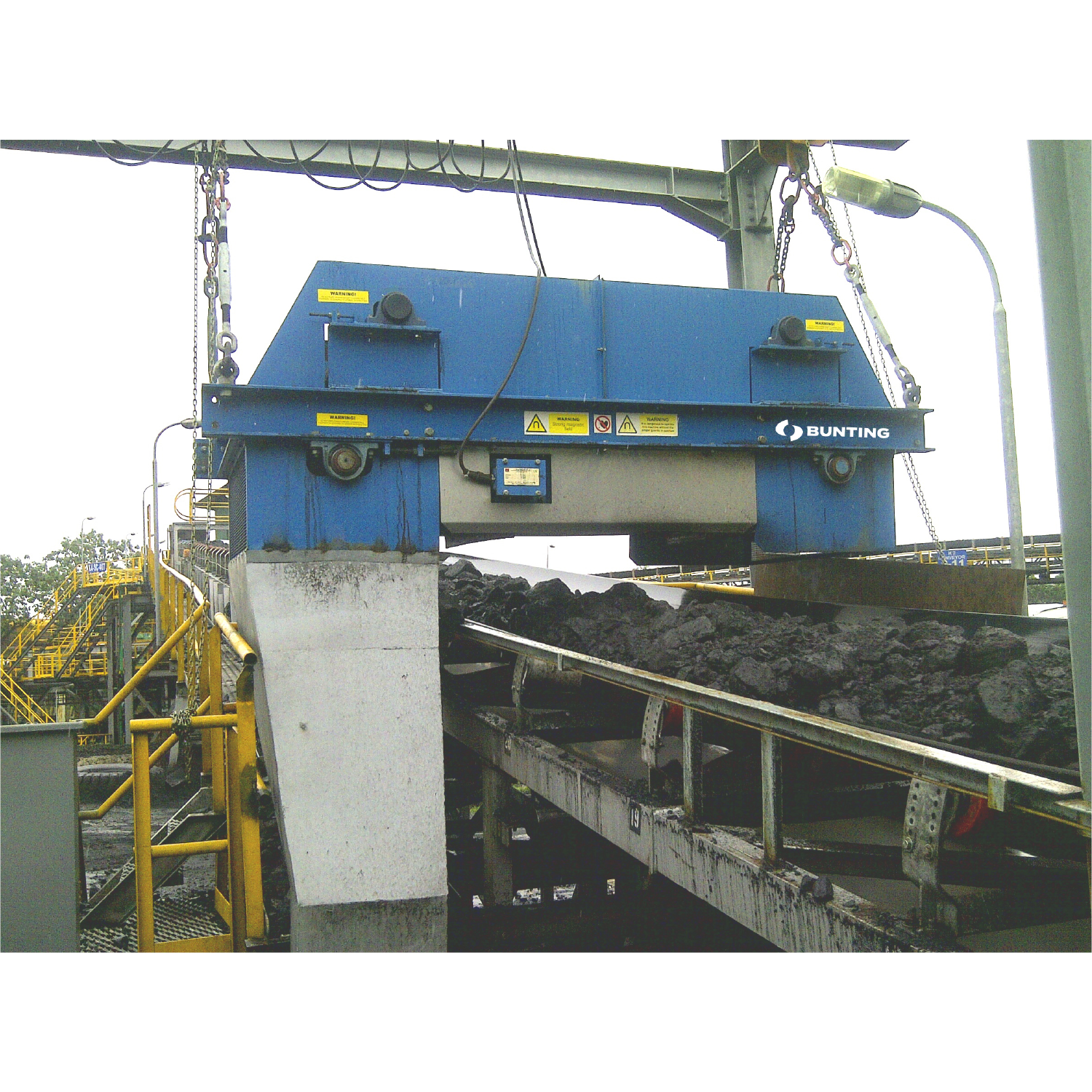

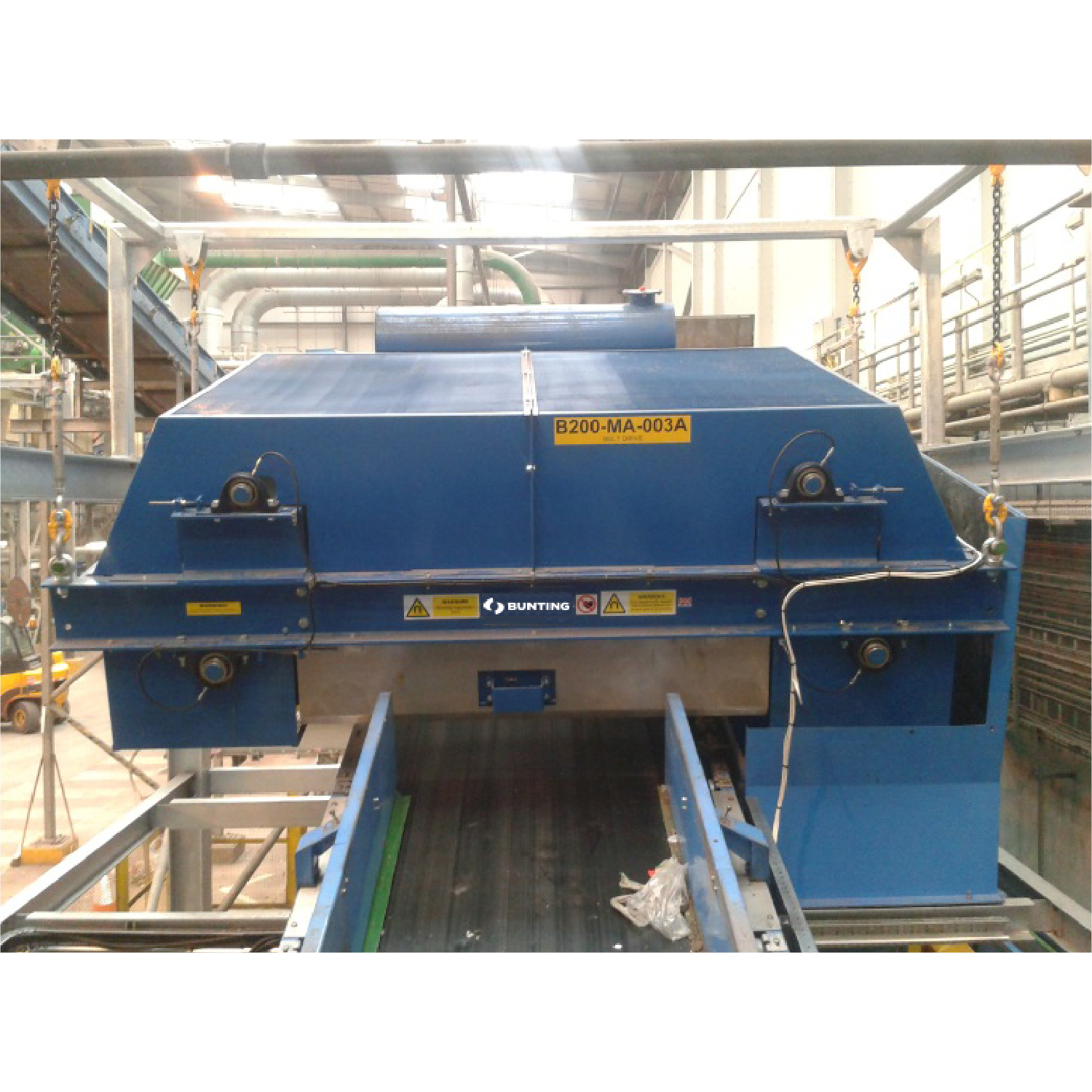

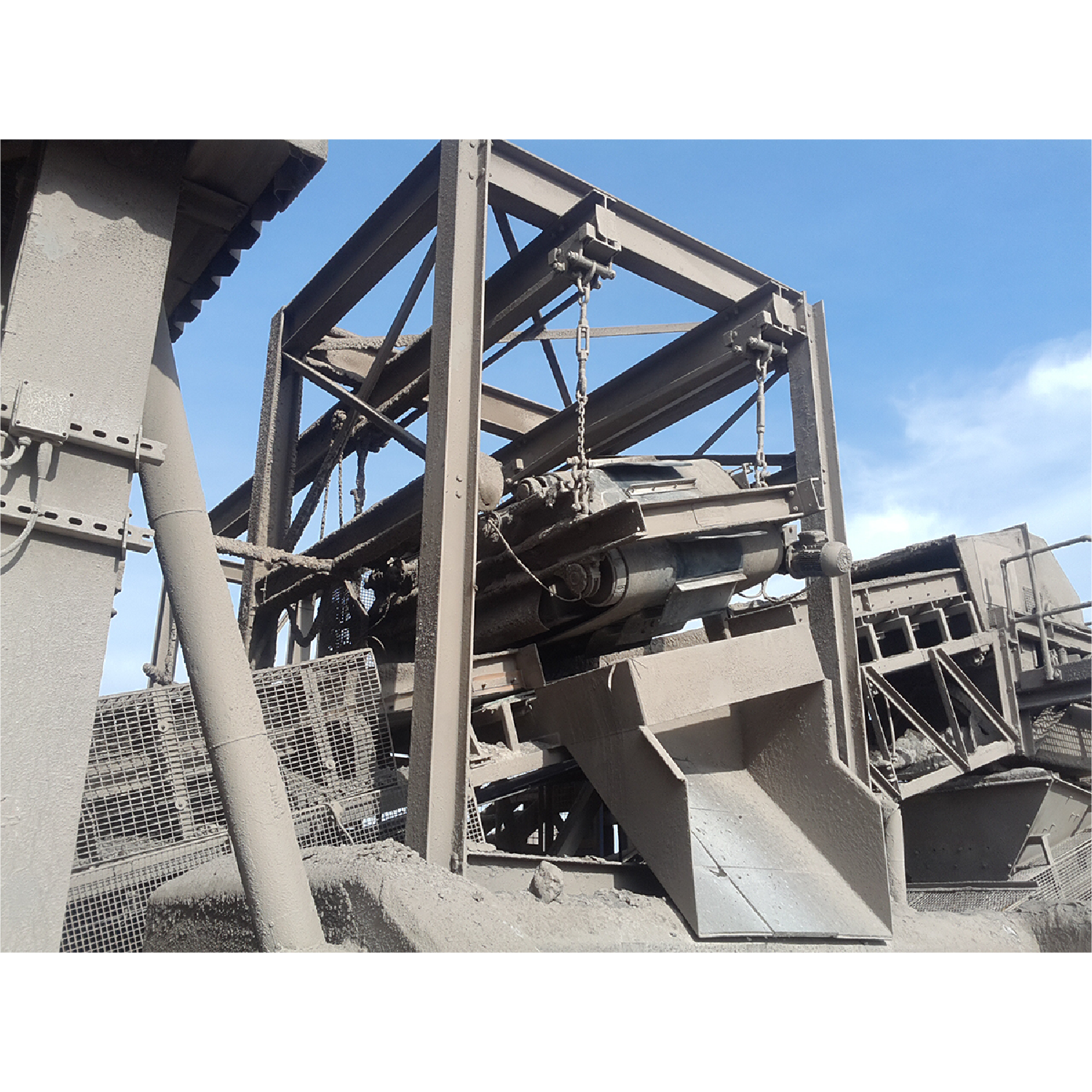

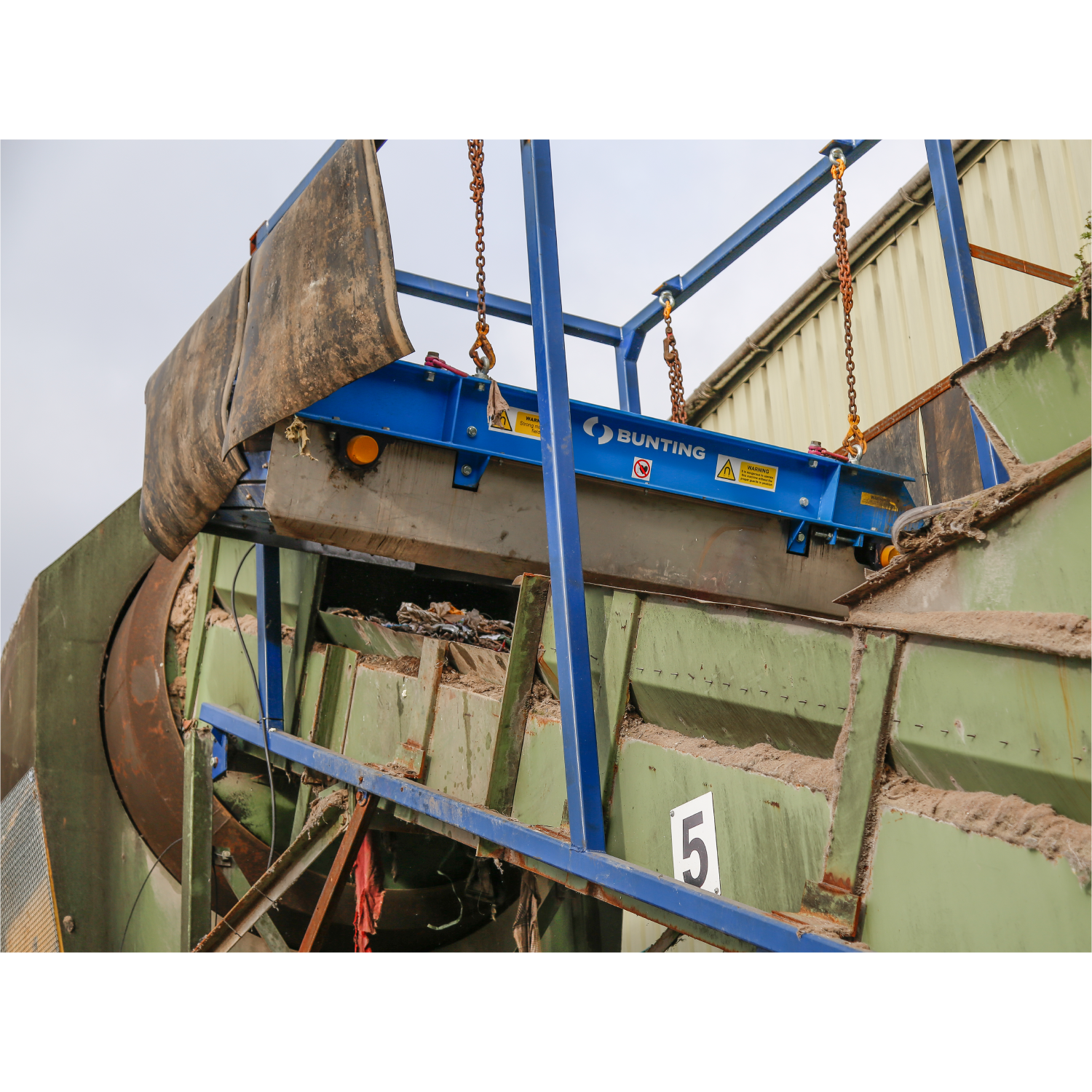

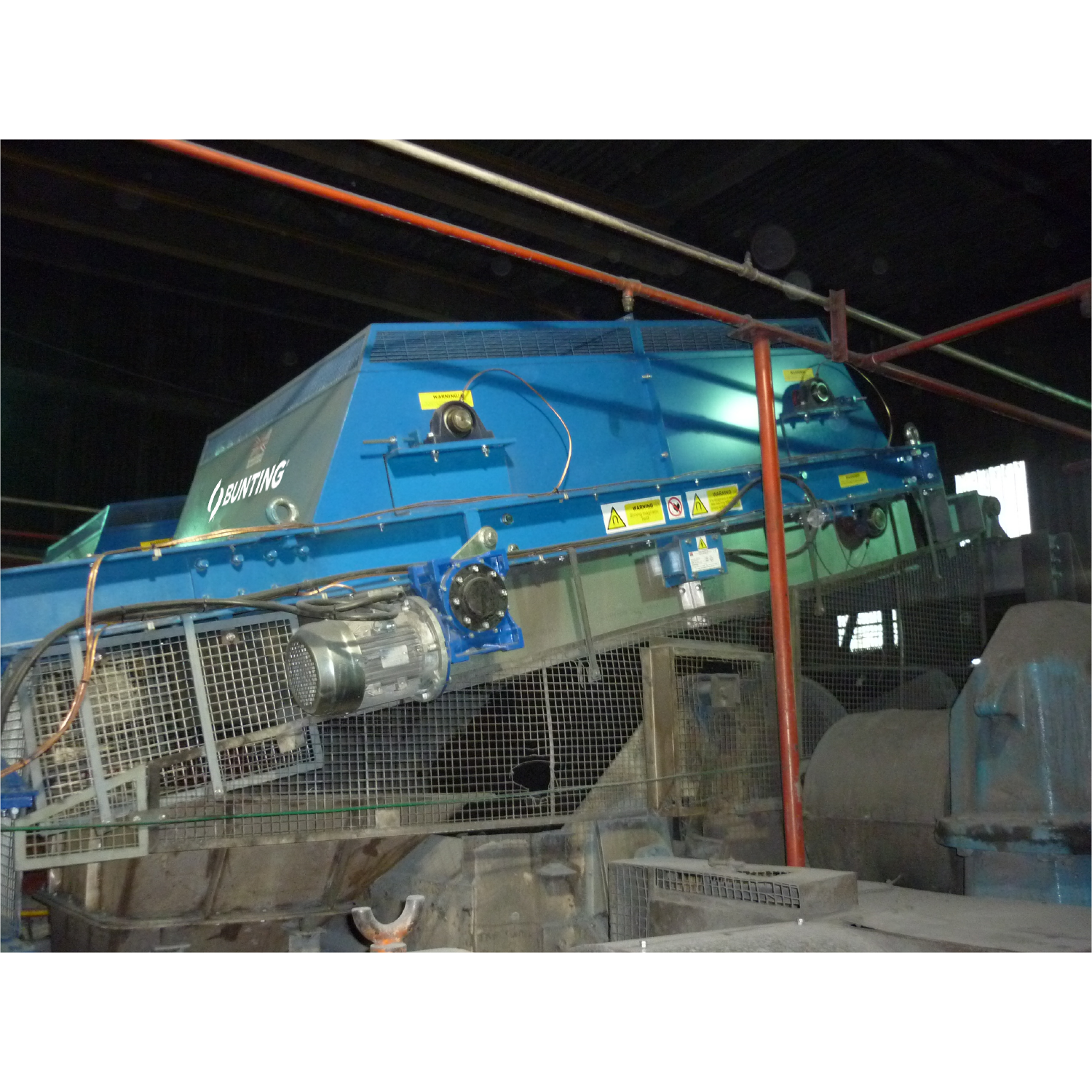

Application Photos

cta-bkg

Talk to an Application Engineer

Not sure what you need? Let’s talk through your application and identify the right solution.
