CHALLENGE
Maintaining material purity is critical in cathode production.
The customer was processing cathode material used in battery manufacturing, where even small levels of ferrous contamination could impact product quality and downstream performance.
Fine powders and granulated materials present a particular challenge. Contaminants can be difficult to detect and remove once mixed into the process.
The system needed to provide reliable, continuous separation without restricting material flow or introducing production delays.
SOLUTION
High-intensity magnetic separation ensured effective contaminant removal.

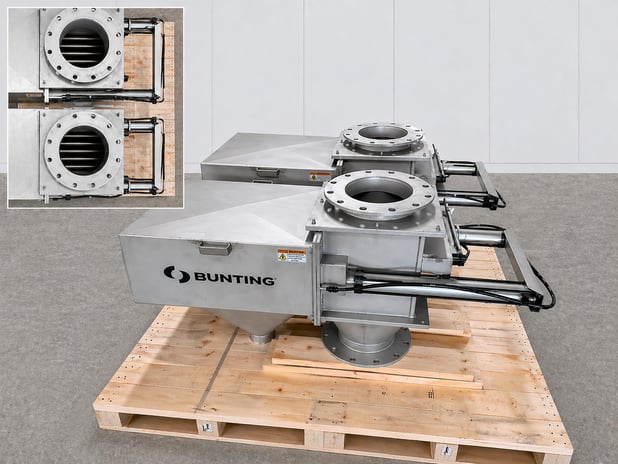

Bunting supplied two HF Drawer Magnets, designed specifically for removing fine ferrous contamination from dry, free-flowing materials.
Installed in-line, the magnets capture tramp metal as material passes through the housing, ensuring continuous protection without interrupting production.
The high-strength magnetic circuits are engineered to attract and retain even very small ferrous particles, helping maintain the required level of material purity.
SYSTEM DESIGN
Designed for efficient integration and consistent performance.
The HF Drawer Magnets were configured to suit the customer’s process, allowing seamless installation into the existing material handling system.
Key features include:
-
High-intensity magnetic tubes for fine particle capture
-
Drawer-style design for easy cleaning and maintenance
-
Continuous operation with no impact on throughput
This ensures reliable separation while supporting routine maintenance and inspection.
RESULT
Improved product quality through consistent contamination control.
With the system in place, the customer achieved reliable removal of ferrous contamination from cathode material, supporting consistent product quality.
The in-line design allowed for continuous operation without slowing production, while the high-intensity magnets ensured effective capture of fine particles.
WHY IT MATTERS
Purity directly impacts battery performance.
In battery manufacturing, even small levels of contamination can affect product quality and reliability. High-intensity magnetic separation provides a simple and effective way to protect both the process and the final product.
FREQUENTLY ASKED QUESTIONS
1. What is a drawer magnet used for?
Drawer magnets are used to remove ferrous contamination from dry, free-flowing materials such as powders and granules. They are commonly installed in gravity-fed systems.
2. Why is contamination control important in cathode materials?
Contamination can affect the performance, safety, and consistency of battery materials. Removing ferrous particles helps maintain product quality and protects downstream processes.
3. Where are drawer magnets installed?
Drawer magnets are typically installed in vertical or gravity-fed process lines, allowing material to pass through while contaminants are captured by the magnetic elements.
